JM-EG03
Electric Bike GPS TrackerSupported

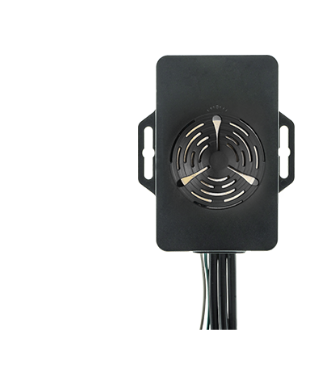

JM-EG03 Electric Bike GPS Tracker
JM-EG03 is an intelligent GPS tracker for improving electric bike security. It supports remote operation by Bluetooth and app, optional buzzer support, and multiple alerts for e-bike protection.
Server Port10013
NetworkGSM:850/900/1800/1900 MHz
HardwareMTK High Sensitivity chip
ProtectionIP67
Device Capabilities
Everything needed to evaluate this GPS device
6Key features
19Parameters
21Functions
Key Features
01
Locks the e-bike automatically in arming mode when abnormal movement is detected.
02
Wide operating voltage supports 36V, 48V, 60V, and 72V e-bikes.
03
External siren support helps with alarms and e-bike search.
04
Users can switch on the e-bike by app or SMS.
05
Automatically switches off electricity in arming status.
06
Instant alerts for vibration, overspeed, power off, and geo-fence events.
Performance & Parameters
- Product Type
- Asset Tracker
- Country of Origin
- China
- Dimension (L*W*H)
- 110*108*8
- Weight
- 76
- Number of Sims
- 1
- IP rating
- IP67
- Build in Battery
- 2500
- Stand By Duration
- 10
- Storage logs
- 1000
- Build in Memory
- 32
- Working Voltage
- 3.7
- GPS Chipset
- MTK High Sensitivity chip
- GPS Signal
- L1, 1575.42MHz C/A code
- GPS Channels
- 32
- GPS Sensitivity
- Tracking:- 165dBm Capturing:- 14dBm
- GPS Positioning Accuracy
- <10
- GPS ANT
- Internal
- Frequency
- GSM:850/900/1800/1900 MHz
- Internet Protocol
- 1
Supported Functions
Number of Digital Input0Number of Digital Output0Number of Analog Input0ACC Detect (Ignition)XOil/Power Control (Relay cutoff)XSOSXFuel DetectionXBluetoothXOTA UpgradeXRS232XRS485XNB-IOTXTPMSXOne Way CommunicationXTwo Way CommunicationXTemperature SensorXWi-FiXCamera/VideoXAccelerometer SensorXG-SensorXLight SensorX
