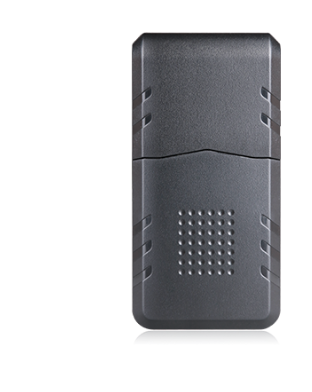

JM-LG01 Asset Tracker
JM-LG01 is an asset tracking device for locating, monitoring, and optimizing non-powered assets. With long battery life and WiFi positioning support, it can be attached to assets that need continuous visibility.
Everything needed to evaluate this GPS device
Key Features
Supports both LBS and GPS tracking for asset visibility.
Remote listening support helps inspect surroundings around the asset.
Long-lasting battery capacity supports extended tracking cycles.
Strong magnetic cover makes it easy to mount on vehicles or assets.
Water-resistant design improves reliability in rainy conditions.
Tamper alerts notify users when the tracker is disassembled or removed.
Performance & Parameters
- Product Type
- Asset Tracker
- Country of Origin
- China
- Dimension (L*W*H)
- 82.0*42.0*20.0
- Weight
- 72g
- Number of Sims
- 1
- IP rating
- IPX5
- Build in Battery
- 2800mAh
- Stand By Duration
- 45 hours
- Storage logs
- 1000
- Build in Memory
- 32 + 32Mb
- Working Voltage
- 3VDC/50mA
- GPS Chipset
- MTK High Sensitivity chip
- GPS Signal
- L1, 1575.42MHz C/A code
- GPS Channels
- 32
- GPS Sensitivity
- Tracking:- 165dBm Capturing:- 14dBm
- GPS Positioning Accuracy
- <10
- GPS ANT
- Internal
- Frequency
- GSM:850/900/1800/1900 MHz
- Internet Protocol
- 1
Supported Functions
Documents & Manual
Other Supported Devices
Frequently Asked Questions
Which server port does the JM-LG01 use with FleetStack?
The JM-LG01 reports on port 10013. The server host is issued with your FleetStack account credentials. Ports for every other model are listed on the device port list.
What is the JM-LG01 used for?
JM-LG01 is an asset tracking device for locating, monitoring, and optimizing non-powered assets. With long battery life and WiFi positioning support, it can be attached to assets that need continuous visibility. It is listed as a asset tracker on FleetStack — browse the full range on supported devices.
Which capabilities does the JM-LG01 support?
On the FleetStack capability matrix the JM-LG01 reports: ACC Detect (Ignition). Telemetry feeds GPS tracking, geofencing and the alert center. The documents above carry the manufacturer's full specification.
How do I connect the JM-LG01 to FleetStack?
Point the tracker at your FleetStack server host and port 10013 with the SIM APN set for your network, usually over SMS configuration. The GPS command list carries the SMS and GPRS commands, the video tutorials walk through the platform side, and technical support can help commission a device.
