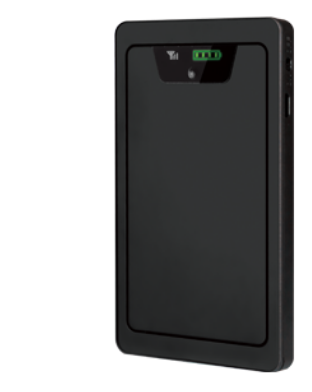

JM-LG05 Asset Tracker
JM-LG05 is an asset GPS tracker designed for goods tracking. It includes light-sensor based tamper detection, a compact body, an internal 2,500mAh battery, and selectable tracking modes for real-time asset monitoring.
Everything needed to evaluate this GPS device
Key Features
Supports both LBS and GPS positioning for asset tracking.
Remote listening support helps check surroundings around the asset.
Water-resistant design supports stable operation in tough outdoor conditions.
Long-lasting battery capacity reduces frequent charging.
Magnetic mounting makes it easier to attach to assets or vehicles.
Tamper alerts notify users when the tracker is removed or disassembled.
Performance & Parameters
- Product Type
- Asset Tracker
- Country of Origin
- China
- Dimension (L*W*H)
- 110*108*8
- Weight
- 76
- Number of Sims
- 1
- IP rating
- IP67
- Build in Battery
- 2500
- Stand by Duration
- 10
- Storage logs
- 1000
- Build in Memory
- 32
- Working Voltage
- 3.7
- GPS Chipset
- MTK High Sensitivity chip
- GPS Signal
- L1, 1575.42MHz C/A code
- GPS Channels
- 32
- GPS Sensitivity
- Tracking:- 165dBm Capturing:- 14dBm
- GPS Positioning Accuracy
- <10
- GPS ANT
- Internal
- Frequency
- GSM:850/900/1800/1900 MHz
- Internet Protocol
- 1
Supported Functions
Documents & Manual
Other Supported Devices
Frequently Asked Questions
Which server port does the JM-LG05 use with FleetStack?
The JM-LG05 reports on port 10013. The server host is issued with your FleetStack account credentials. Ports for every other model are listed on the device port list.
What is the JM-LG05 used for?
JM-LG05 is an asset GPS tracker designed for goods tracking. It includes light-sensor based tamper detection, a compact body, an internal 2,500mAh battery, and selectable tracking modes for real-time asset monitoring. It is listed as a asset tracker on FleetStack — browse the full range on supported devices.
Which capabilities does the JM-LG05 support?
On the FleetStack capability matrix the JM-LG05 reports: G-Sensor. Telemetry feeds GPS tracking, geofencing and the alert center. The documents above carry the manufacturer's full specification.
How do I connect the JM-LG05 to FleetStack?
Point the tracker at your FleetStack server host and port 10013 with the SIM APN set for your network, usually over SMS configuration. The GPS command list carries the SMS and GPRS commands, the video tutorials walk through the platform side, and technical support can help commission a device.
