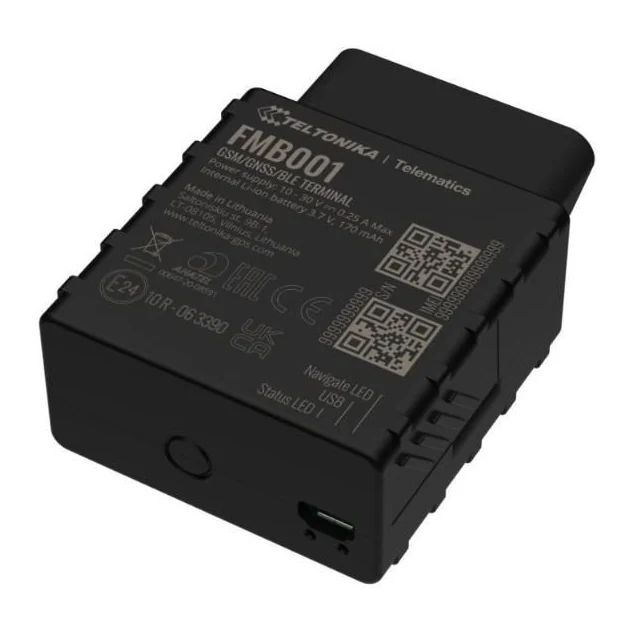

Teltonika FMB001 - OBD Plug & Track Tracker
Advanced Plug and Track real-time tracking terminal with GNSS, GSM and Bluetooth® connectivity.
Product Details
The FMB001 plugs straight into a vehicle OBDII socket, so a fit takes seconds and needs no wiring loom. It reads engine data from the OBD port while its own GNSS receiver handles positioning, and a 170 mAh backup battery keeps it reporting if the socket loses power.
FleetStack Advantage
Get on-trip and off-trip vehicle distance covered
Monitor deviated distance, time, and number of vehicle trips
Analyse aggressive driving behaviour, including overspeeding, harsh braking, acceleration, and cornering
Detect towing events with alerts
Track driver performance, incident summary, top drivers, and much more
Prevent vehicle theft with geofencing
Manage the maintenance of the vehicles efficiently and on time
Create and manage trips on the move
Key Features
Plugs into the OBDII socket — no wiring loom and no installer time.
Reads engine data from the vehicle OBD port alongside its own GNSS fix.
Bluetooth support for external sensors and peripherals.
170 mAh backup battery reports an unplug event if the device is removed.
General Information
- Product Type
- OBD Plug & Track Tracker
- Manufacturer
- Teltonika Telematics
- Country of Origin
- Lithuania
- Weight
- 60 g
- Operating Temperature
- -40 °C to +85 °C
- Operating Humidity
- 5% to 95% non-condensing
Network and Connectivity
- Network
- 2G (GSM/GPRS), GNSS, Bluetooth
- Interfaces
- OBDII connector, USB, Navigate LED, Status LED
Power
- Power Supply
- 10 - 30 V, 0.25 A max
- Built-in Battery
- 170 mAh Li-ion (3.75–3.90 V)
Server Connection
- Server Host
- Issued with your FleetStack account credentials
- Server Port
- 5027
- Protocol
- Teltonika (Codec 8 / Codec 8 Extended / Codec JSON)
Supported Functions
Documents & Manual
Other Supported Devices
Frequently Asked Questions
Which server port does the Teltonika FMB001 use with FleetStack?
The Teltonika FMB001 connects on port 5027 using the Teltonika protocol, with Codec 8, Codec 8 Extended and Codec JSON all supported. The server host is issued with your FleetStack account credentials. Ports for other models are on the device port list.
What can I connect to the Teltonika FMB001?
The FMB001 provides OBDII connector, USB, Navigate LED, Status LED. Power is 10 - 30 V, 0.25 A max. Sensor and I/O data feeds fuel management, driver behaviour and the alert center. The full pin detail is in Teltonika's datasheet, linked in the documents above.
Which mobile network does the Teltonika FMB001 use?
The FMB001 runs on 2G (GSM/GPRS), GNSS, Bluetooth. Where a 2G network has been retired, Teltonika offers 4G models in the same family — contact FleetStack and we will confirm which suits your market.
Does the Teltonika FMB001 have a backup battery?
Yes — a 170 mAh Li-ion (3.75–3.90 V) backup cell. It is not the primary supply; it keeps the tracker reporting through an external power cut and lets the device raise an unplug alert.
What operating conditions does the Teltonika FMB001 tolerate?
Operating temperature is -40 °C to +85 °C at 5% to 95% non-condensing humidity. Teltonika does not publish an ingress protection rating for this model, so plan for a protected in-cabin or behind-panel installation.
