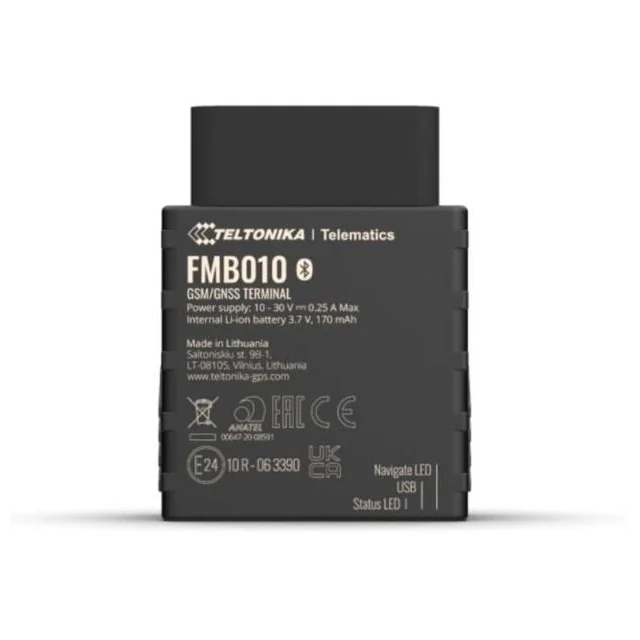

Teltonika FMB010 - OBD Plug & Track Tracker
An easy Plug and Track real-time tracking terminal with GNSS, GSM and Bluetooth® connectivity.
Product Details
The FMB010 is the entry point of the OBD range — the same socket-fit convenience as the FMB001 with a trimmed feature set, aimed at straightforward track-and-trace deployments where engine diagnostics are not the priority.
FleetStack Advantage
Get on-trip and off-trip vehicle distance covered
Monitor deviated distance, time, and number of vehicle trips
Analyse aggressive driving behaviour, including overspeeding, harsh braking, acceleration, and cornering
Detect towing events with alerts
Track driver performance, incident summary, top drivers, and much more
Prevent vehicle theft with geofencing
Manage the maintenance of the vehicles efficiently and on time
Create and manage trips on the move
Key Features
Entry-level OBD tracker for straightforward track-and-trace fleets.
Socket fit — no wiring, no installer time.
170 mAh backup battery covers power loss and unplug alerts.
USB port for local configuration.
General Information
- Product Type
- OBD Plug & Track Tracker
- Manufacturer
- Teltonika Telematics
- Country of Origin
- Lithuania
- Weight
- 60 g
- Operating Temperature
- -40 °C to +85 °C
- Operating Humidity
- 5% to 95% non-condensing
Network and Connectivity
- Network
- 2G (GSM/GPRS), GNSS, Bluetooth
- Interfaces
- OBDII connector, USB, Navigate LED, Status LED
Power
- Power Supply
- 10 - 30 V, 0.25 A max
- Built-in Battery
- 170 mAh Li-ion (3.75–3.90 V)
Server Connection
- Server Host
- Issued with your FleetStack account credentials
- Server Port
- 5027
- Protocol
- Teltonika (Codec 8 / Codec 8 Extended / Codec JSON)
Supported Functions
Documents & Manual
Other Supported Devices
Frequently Asked Questions
Which server port does the Teltonika FMB010 use with FleetStack?
The Teltonika FMB010 connects on port 5027 using the Teltonika protocol, with Codec 8, Codec 8 Extended and Codec JSON all supported. The server host is issued with your FleetStack account credentials. Ports for other models are on the device port list.
What can I connect to the Teltonika FMB010?
The FMB010 provides OBDII connector, USB, Navigate LED, Status LED. Power is 10 - 30 V, 0.25 A max. Sensor and I/O data feeds fuel management, driver behaviour and the alert center. The full pin detail is in Teltonika's datasheet, linked in the documents above.
Which mobile network does the Teltonika FMB010 use?
The FMB010 runs on 2G (GSM/GPRS), GNSS, Bluetooth. Where a 2G network has been retired, Teltonika offers 4G models in the same family — contact FleetStack and we will confirm which suits your market.
Does the Teltonika FMB010 have a backup battery?
Yes — a 170 mAh Li-ion (3.75–3.90 V) backup cell. It is not the primary supply; it keeps the tracker reporting through an external power cut and lets the device raise an unplug alert.
What operating conditions does the Teltonika FMB010 tolerate?
Operating temperature is -40 °C to +85 °C at 5% to 95% non-condensing humidity. Teltonika does not publish an ingress protection rating for this model, so plan for a protected in-cabin or behind-panel installation.
