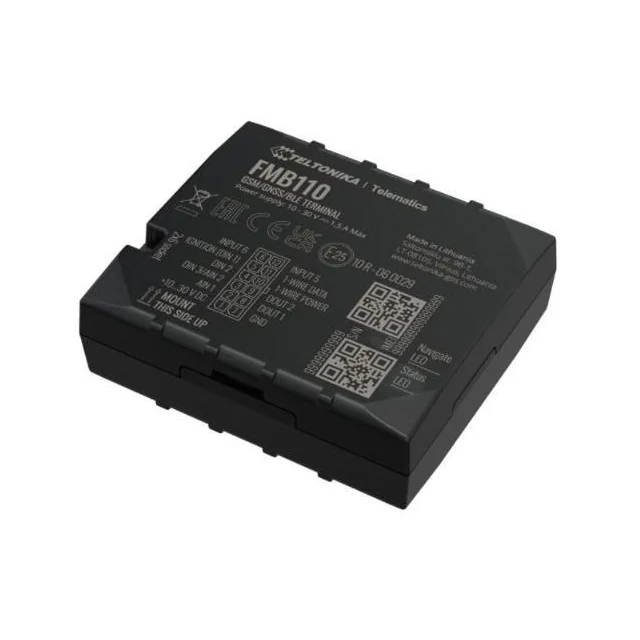

Teltonika FMB110 - Wired Vehicle Tracker
GNSS/GSM/Bluetooth® tracker with internal GNSS/GSM antennas.
Product Details
The FMB110 is the hard-wired counterpart to the OBD models: a hidden install with internal antennas and a full I/O block for ignition sense, a relay output and analog sensors. It is the no-battery variant — where backup power through a cut supply matters, the FMB120 is the same device with a 170 mAh cell.
FleetStack Advantage
Get on-trip and off-trip vehicle distance covered
Monitor deviated distance, time, and number of vehicle trips
Analyse aggressive driving behaviour, including overspeeding, harsh braking, acceleration, and cornering
Detect towing events with alerts
Track driver performance, incident summary, top drivers, and much more
Prevent vehicle theft with geofencing
Manage the maintenance of the vehicles efficiently and on time
Create and manage trips on the move
Key Features
Hard-wired install with internal GNSS and GSM antennas — nothing visible.
Ignition detection on DIN 1 plus a second configurable digital input.
Two digital outputs for a relay, buzzer or starter cut.
1-Wire bus for temperature sensors and iButton driver ID.
General Information
- Product Type
- Wired Vehicle Tracker
- Manufacturer
- Teltonika Telematics
- Country of Origin
- Lithuania
- Weight
- 50 g
- Operating Temperature
- -40 °C to +85 °C
- Operating Humidity
- 5% to 95% non-condensing
Network and Connectivity
- Network
- 2G (GSM/GPRS), GNSS, Bluetooth
- Interfaces
- 2 digital inputs, 2 digital outputs, 2 analog inputs, 1-Wire
Power
- Power Supply
- 10 - 30 V, 1.5 A max
Server Connection
- Server Host
- Issued with your FleetStack account credentials
- Server Port
- 5027
- Protocol
- Teltonika (Codec 8 / Codec 8 Extended / Codec JSON)
Supported Functions
Documents & Manual
Other Supported Devices
Frequently Asked Questions
Which server port does the Teltonika FMB110 use with FleetStack?
The Teltonika FMB110 connects on port 5027 using the Teltonika protocol, with Codec 8, Codec 8 Extended and Codec JSON all supported. The server host is issued with your FleetStack account credentials. Ports for other models are on the device port list.
What can I connect to the Teltonika FMB110?
The FMB110 provides 2 digital inputs, 2 digital outputs, 2 analog inputs, 1-Wire. Power is 10 - 30 V, 1.5 A max. Sensor and I/O data feeds fuel management, driver behaviour and the alert center. The full pin detail is in Teltonika's datasheet, linked in the documents above.
Which mobile network does the Teltonika FMB110 use?
The FMB110 runs on 2G (GSM/GPRS), GNSS, Bluetooth. Where a 2G network has been retired, Teltonika offers 4G models in the same family — contact FleetStack and we will confirm which suits your market.
Does the Teltonika FMB110 have an internal battery?
No. The FMB110 has no internal battery and reports only while the vehicle supply is connected. If you need reporting to continue through a power cut, choose a model in the range that carries a backup cell.
What operating conditions does the Teltonika FMB110 tolerate?
Operating temperature is -40 °C to +85 °C at 5% to 95% non-condensing humidity. Teltonika does not publish an ingress protection rating for this model, so plan for a protected in-cabin or behind-panel installation.
Get Started With Us
Tell us about your fleet and we will get back with pricing, availability, and an onboarding plan for the Teltonika FMB110. You can also book a meeting or read the REST API docs.
