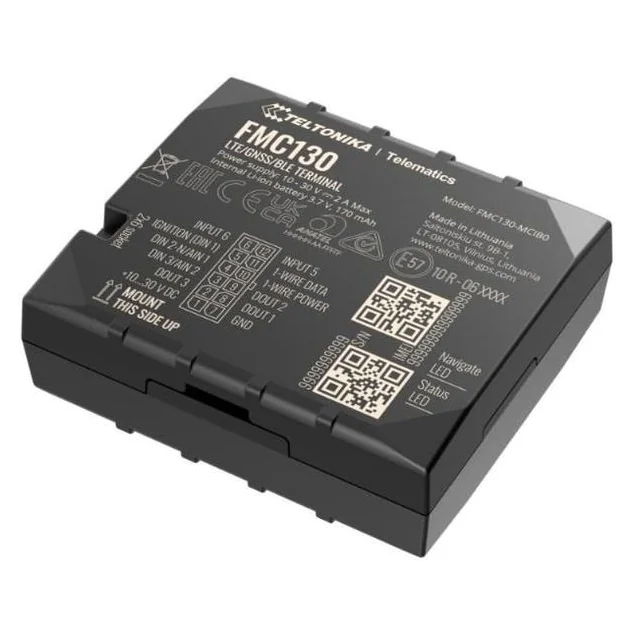

Teltonika FMC130 - LTE GPS Tracker
Advanced LTE terminal with flexible inputs configuration.
Product Details
The FMC130 is the 4G counterpart of the FMB130 — the same three-output I/O block and 2 A supply rating on an LTE modem. It is the only model in this group with a published ingress rating, IP41.
FleetStack Advantage
Get on-trip and off-trip vehicle distance covered
Monitor deviated distance, time, and number of vehicle trips
Analyse aggressive driving behaviour, including overspeeding, harsh braking, acceleration, and cornering
Detect towing events with alerts
Track driver performance, incident summary, top drivers, and much more
Prevent vehicle theft with geofencing
Manage the maintenance of the vehicles efficiently and on time
Create and manage trips on the move
Key Features
4G LTE with the flexible three-output I/O block of the FMB130.
IP41 ingress rating — the only published rating in this group.
Configurable inputs that can act as digital or analog.
1-Wire data and power for sensors and driver identification.
General Information
- Product Type
- LTE GPS Tracker
- Manufacturer
- Teltonika Telematics
- Country of Origin
- Lithuania
- Weight
- 55 g
- Operating Temperature
- -20 °C to +85 °C
- IP Rating
- IP41
Network and Connectivity
- Network
- 4G LTE, GNSS, Bluetooth
- Interfaces
- 3 digital outputs, configurable digital/analog inputs, 1-Wire data and power
Power
- Power Supply
- 10 - 30 V, 2 A max
- Built-in Battery
- 170 mAh Li-ion (3.75–3.90 V)
Server Connection
- Server Host
- Issued with your FleetStack account credentials
- Server Port
- 5027
- Protocol
- Teltonika (Codec 8 / Codec 8 Extended / Codec JSON)
Supported Functions
Documents & Manual
Other Supported Devices
Frequently Asked Questions
Which server port does the Teltonika FMC130 use with FleetStack?
The Teltonika FMC130 connects on port 5027 using the Teltonika protocol, with Codec 8, Codec 8 Extended and Codec JSON all supported. The server host is issued with your FleetStack account credentials. Ports for other models are on the device port list.
What can I connect to the Teltonika FMC130?
The FMC130 provides 3 digital outputs, configurable digital/analog inputs, 1-Wire data and power. Power is 10 - 30 V, 2 A max. Sensor and I/O data feeds fuel management, driver behaviour and the alert center. The full pin detail is in Teltonika's datasheet, linked in the documents above.
Which mobile network does the Teltonika FMC130 use?
The FMC130 runs on 4G LTE, GNSS, Bluetooth, so it keeps working in markets where 2G networks have been switched off.
Does the Teltonika FMC130 have a backup battery?
Yes — a 170 mAh Li-ion (3.75–3.90 V) backup cell. It is not the primary supply; it keeps the tracker reporting through an external power cut and lets the device raise an unplug alert.
What operating conditions does the Teltonika FMC130 tolerate?
Operating temperature is -20 °C to +85 °C, with an IP41 ingress protection rating.
